Contractor Rig Dimensions

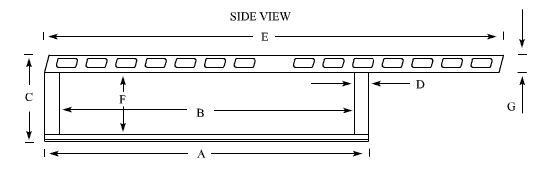

Dimensions for service body ladder racks - Contractor Rig - side view

DIMENSIONS (inches) - CONTRACTOR RIG - SIDE VIEW - SERVICE BODY TRUCKS

A
B
C
D
E
F
G
8" Body with Standard Cab
96.0
86.5
1
4.45
138
1
5.2
8" Body with Extended Cab
96.0
86.5
1
4.45
156
1
5.2
8" Body with Crew Cab
96.0
86.5
1
4.45
156
1
5.2
9" Body with Standard Cab
106.75
97.25
1
4.45
147
1
5.2
9" Body with Extended Cab
106.75
97.25
1
4.45
156
1
5.2
9" Body with Crew Cab
106.75
97.25
1
4.45
156
1
5.2
11" Body with Standard Cab
132.0
122.5
1
4.45
174
1
5.2
11" Body with Extended Cab
132.0
122.5
1
4.45
174
1
5.2
11" Body with Crew Cab
132.0
122.5
1
4.45
174
1
5.2

1. This height is variable and is based on the measurement between the top of the body and the top of the roof.
Standard heights come in increments of 2" although any height can be ordered.

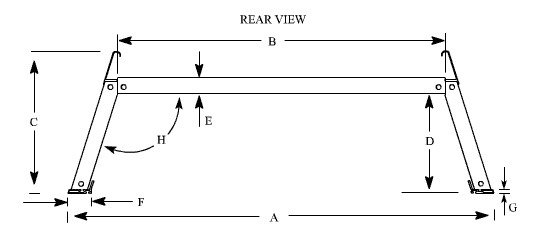

Dimensions for service body ladder racks - Contractor Rig - end view

DIMENSIONS (inches) - CONTRACTOR RIG - REAR VIEW -SERVICE BODY TRUCKS

A
B
C
D
E
F
G
H
8" Body with Standard Cab
1
2
3
3
2.45
3.7
.563
107.5
8" Body with Extended Cab
1
2
3
3
2.45
3.7
.563
107.5
8" Body with Crew Cab
1
2
3
3
2.45
3.7
.563
107.5
9" Body with Standard Cab
1
2
3
3
2.45
3.7
.563
107.5
9" Body with Extended Cab
1
2
3
3
2.45
3.7
.563
107.5
9" Body with Crew Cab
1
2
3
3
2.45
3.7
.563
107.5
11" Body with Standard Cab
1
2
3
3
2.45
3.7
.563
107.5
11" Body with Extended Cab
1
2
3
3
2.45
3.7
.563
107.5
11" Body with Crew Cab
1
2
3
3
2.45
3.7
.563
107.5

1. This width is variable (can be made whatever size you need) but is also a function of leg height and crossmember width.
2. Crossmembers can be ordered in any length needed but are usually supplied at 51". This allows the rack to conform to the cab profile.
3. These heights are variable and are based on the measurement between the top of the body and the top of the roof. Standard heights come in increments of 2" although any height can be ordered.

Utility Rig Dimensions

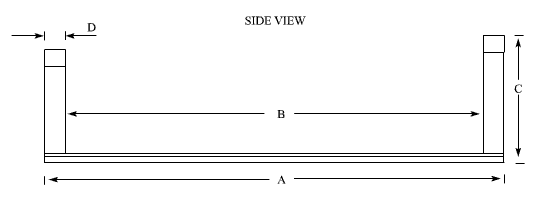

Dimensions for service body ladder racks - Utility  Rig - side view

DIMENSIONS (inches) - UTILITY RIG - SIDE VIEW - SERVICE BODY TRUCKS

A
B
C
D
8" Body with Standard Cab
96.0
86.5
1
4.45
8" Body with Extended Cab
96.0
86.5
1
4.45
8" Body with Crew Cab
96.0
86.5
1
4.45
9" Body with Standard Cab
106.75
97.25
1
4.45
9" Body with Extended Cab
106.75
97.25
1
4.45
9" Body with Crew Cab
106.75
97.25
1
4.45
11" Body with Standard Cab
132.0
122.5
1
4.45
11" Body with Extended Cab
132.0
122.5
1
4.45
11" Body with Crew Cab
132.0
122.5
1
4.45

1. This height is variable and is based on the measurement between the top of the body and the top of the roof.
Standard heights come in increments of 2" although any height can be ordered.

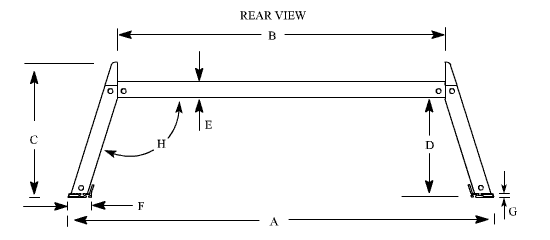

Dimensions for service body ladder racks - Utility  Rig - end view

DIMENSIONS (inches) - UTILITY RIG - REAR VIEW - SERVICE BODY TRUCKS

A
B
C
D
E
F
G
H
8" Body with Standard Cab
1
2
3
3
2.45
3.7
.563
107.5
8" Body with Extended Cab
1
2
3
3
2.45
3.7
.563
107.5
8" Body with Crew Cab
1
2
3
3
2.45
3.7
.563
107.5
9" Body with Standard Cab
1
2
3
3
2.45
3.7
.563
107.5
9" Body with Extended Cab
1
2
3
3
2.45
3.7
.563
107.5
9" Body with Crew Cab
1
2
3
3
2.45
3.7
.563
107.5
11" Body with Standard Cab
1
2
3
3
2.45
3.7
.563
107.5
11" Body with Extended Cab
1
2
3
3
2.45
3.7
.563
107.5
11" Body with Crew Cab
1
2
3
3
2.45
3.7
.563
107.5

1. This width is variable (can be made whatever size you need) but is also a function of leg height and crossmember width.
2. Crossmembers can be ordered in any length needed but are usually supplied at 51". This allows the rack to conform to the cab profile.
3. These heights are variable and are based on the measurement between the top of the body and the top of the roof. Standard heights come in increments of 2" although any height can be ordered.
